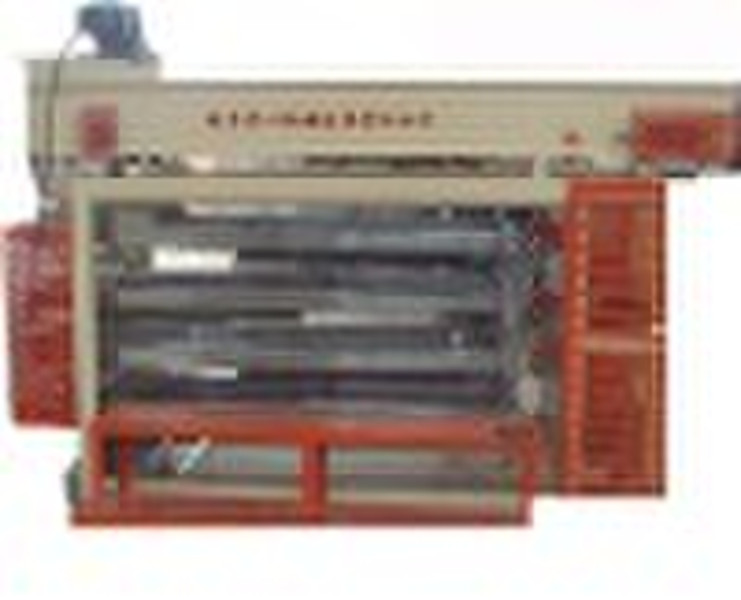

Sorting Machine for Tabacco, Tea Industry

Leaves Sorting Vibration Sieve1.Brief Introduction 1)Leaves sorting vibration sieve is a multi-layer screening and selecting machine. It mainly consists of frame, driving device, feeding machine, screen, elastic element, electric cabinet, discharge hole, connecting material box, etc. 2)Widely used in tabacco, pharmaceuticals, tea industry, industry of fine chemicals, etc. Suitable for screening of tea leaf, wastepaper, ultra-light, blade shape material, and other difficult to screening material. 2. Features 1)Four-layer screening and selecting machine 2) High screening efficiency 3) Used for testing on the quality status of leaf blade shape material in size dimension, shape, ranked distribution, etc. Also for testing on large, median, small leaf blade percentage and fragment rate of tabacco material. 3.Screen Technical Parameters Screen Mesh Size (mm)25Screening out material > 25mm square large leaf blade 12Screening out material > 12mm square median leaf blade 6Screening out material > 6mm square small leaf blade 3.1Screening out material > 3.1mm square fragments Screen Length*Width (mm)2000*500Distribution processing length per layer ≥ 660mm Vibration Frequency(r/min)525±5Amplitude (mm)13.1±1.2 4.Note: 1) Can be customized according to different requirements of customers. 2) Do not be hesitant to contact us.
