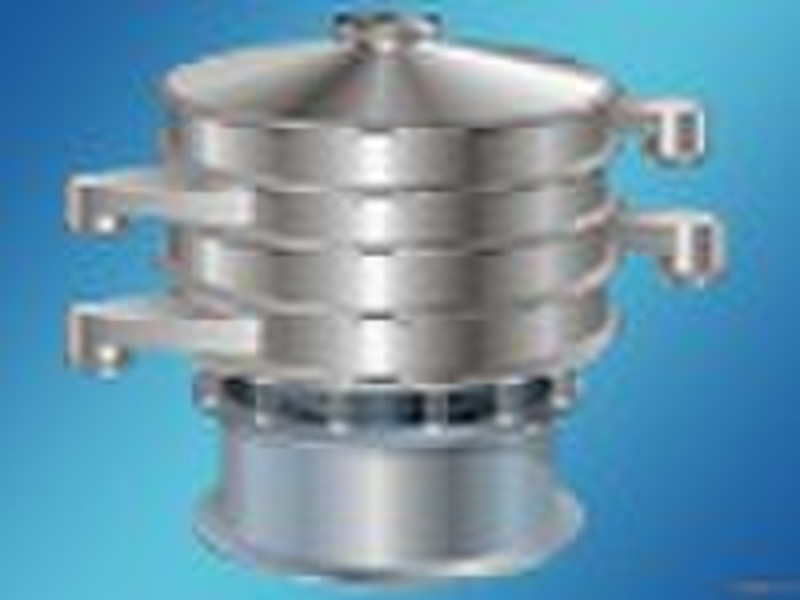

XZS series round screen for medical TX

Three-Dsieveshaker(rotaryvibrationsieve) formedicine 1.FunctionandPrinciples ThebasicprincipleofVibrationscreeningfilteristheheavyhammer(unbalancedheavyhammer)installedin theelectricalaxistransformthemotor’srotarymotionintohorizontal,vertical,tiltmotion(three-Dmovement),thenthismovementpassedtothescreensurface.Adjusttheupperandlowerendsofheavy hammer’sphaseangle,thiscanchangethetrajectoriesofmaterialsonthescreensurface. 2.Features 1)Anymucuscanbescreened. 2)Theaperturedonotblock,canbescreenedupto500mesh,or0.028mm 3)Changingsievejustneed3-5minutes. 3.Parameters Screeningmaterial Proportion Mesh Model Methods Capacity Motorpower Medicinepowder 0.8 80,180 SZX-800-2S Dry 150kg 0.75kw Injecta 1.0 0.028mm SZX-800-1S Liquid 800kg 0.75kw Pharmaceuticals 0.7 20,80 SZX-800-2S Dry 800kg 0.75kw 4.Analogdiagram AhierarchicalfilteringsimulateddiagramBfilterimpuritiessimulateddiagramCsolid-liquidseparationsimulateddiagram4.Standard Model Size Chart Model A B C D E F G H I J K L N SZX-800-1S 680 580 200 800 125 90 380 540 370 510 690 SZX-800-2S 680 580 200 800 125 90 380 540 370 500 640 805
